Keyboard Unit E
Discontinued

Mfr Catalog (Old/new) #  (?) / (?)

Technical Back E <--|--> Keyboard Unit E

Battery: 2x CR2025
Also known as: DL2025, ECR2025, NA, BR2025, 208-205, DL20256B, BR2025-1W, CR2025-1W, KCR2025, L12, LM2025, SB-T14, LF1/2V, 5003LC

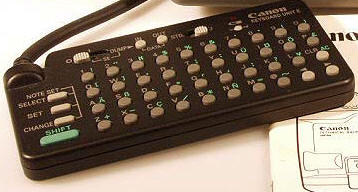

The Keyboard Unit E (supplied with the Technical Back E) is a dedicated keyboard which allows you to input comments in five languages (English, French, German, Spanish and Japanese). Up to 30 characters of random information can be recorded for each frame. The Interface Unit TB connects the Technical Back E with an IBM compatible computer. It downloads exposure data and other information to the computer and also allows computer-controlled operation of the EOS camera.
Holds 4 extra notes that can be exchanged with the TB-E
Can swap memory dumps from the TB-E for storage
Allows for more convenient user interface
