Technical Back E
Discontinued
Mfr Catalog (Old/new) # C51-9861021 / no change
$300,00
EOS (6xx,RT) <--|--> Technical Back E <--|--> Keyboard Unit E
|--> Interface Unit TB
Includes:
Keyboard Unit E
Battery: CR2025
Also known as: DL2025, ECR2025, NA, BR2025, 208-205, DL20256B, BR2025-1W,
CR2025-1W, KCR2025, L12, LM2025, SB-T14, LF1/2V, 5003LC

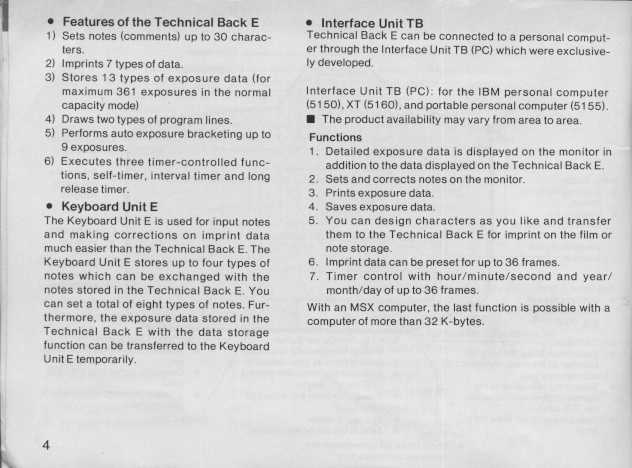

The Technical Back E expands the functions of compatible EOS cameras. It will
print the date or time on each frame and will automatically record exposure
information for up to 361 frames. It provides advanced auto exposure bracketing
for up to + or - 5 stops.
Intervalometer functions are provided for automatic
time-lapse photography and timed shutter release.
The Back also provides
Variable Program Shiff for customized AE programs to meet any shooting
requirements.
Use with ISO 100 or faster film.
Will not work with shutter speeds over 1/2000 (EOS620).
In P-mode 6 (partial metering) the data recorded will be that of evaluative
metering.
The Keyboard Unit E (supplied with the Technical Back E) is a
dedicated keyboard which allows you to input comments in five languages
(English, French, German, Spanish and Japanese). Up to 30 characters of random
information can be recorded for each frame.
The Interface Unit TB connects the
Technical Back E with an IBM compatible computer. It downloads exposure data and
other information to the computer and also allows computer-controlled operation
of the EOS camera.
Pinout of Technical Back E connector
